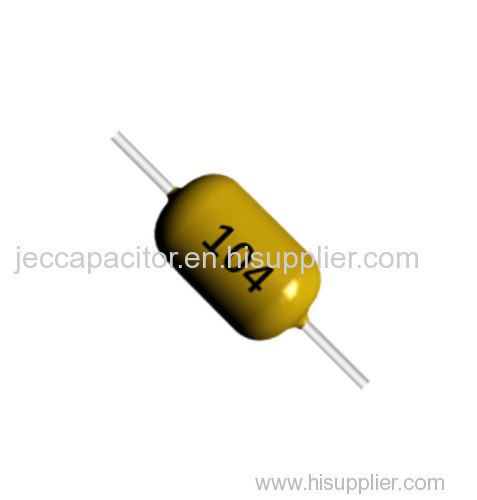

104 low-voltage-ceramic-capacitor 104 50v Ceramic Capacitor Lighting Capacitor 224k Safety Film Capacitor
104 low-voltage-ceramic-capacitor 104 50v Ceramic Capacitor Lighting Capacitor 224k Safety Film Capacitor
super high voltage ceramic capacitor features:
Small size and large capacity. Compared with the radial type, the auto-amounting cost is lower, the height of the parts is reduced, and the installation density is increased, which occupy less space.
high voltage capacitor Electrical characteristics:
Technical requirements reference Standard | IEC 60384-9 |
Rated Voltage(UR) | 25 / 50 / 100 / 500 / 1000 / 2000 VDC |
Capacitance Range | 0.5pF to 0.1μF,100pF to 10μF |
Withstand Voltage | 2.5UR(DC) |
Capacitance Tolerance | ±0.25pF(C), ±0.5 Pf(D), ±5%(J),±10%(K ),±20%(M),±10%(K ),±20%(M),±80%-20%(Z) |
Dissipation Factor (tgδ) | ≤0.15%,X7R≤3.5%,Y5V≤7.0%(220nF), ≤10.0%(220~470nF)≦12.5%(470 nF ~10μF) |
Insulation Resistance(IR) | C≤10 nF:IR>10000MΩ ; C>10 nF:R .C>100MΩ. μF,C≤25 nF:IR>4000MΩ ; C>25 nF:R.C>100MΩ.μF |
Operating Temperature Range | -55℃ to +125℃,X7R,-55℃ to +125℃ ; Y5V,-25℃ to +85℃ |
Temperature Characteristic | NPO,N750,SL,X7R,Y5V |
Flame Retardant Epoxy Resin | UL94-V0 |
If You Are Finding Lighting Capacitor and High Density Capacitor and China Capacitor In China, We Will Be Your Best Choose! We Have Our Own Factory, So We Can Give You A Cheap Price!
